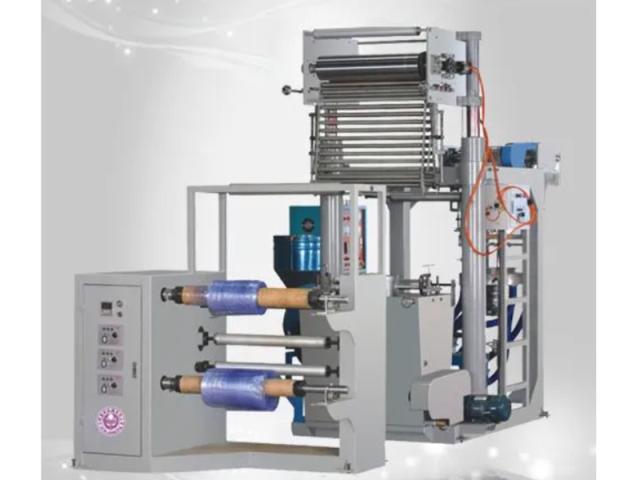

PVC film blowing machines are vital equipment used in the manufacturing process of PVC films. These machines are designed to create high-quality PVC films of different widths, thicknesses, and lengths for use in various industries.
Online InquiryPVC film blowing machines are vital equipment used in the manufacturing process of PVC films. These machines are designed to create high-quality PVC films of different widths, thicknesses, and lengths for use in various industries. The machine operates by melting PVC pellets, which are then extruded through a circular die to create a tube-like structure that is inflated to form the desired thickness and width of the film.
PVC film blowing machines are commonly used in the packaging industry to produce PVC films for wrapping and sealing of food, pharmaceuticals, and other products. They are also used in the production of PVC shrink sleeves, labels, and other decorative applications.
With advancements in technology, PVC film blowing machines are becoming more efficient, reliable, and automated, allowing manufacturers to increase their productivity and output while maintaining consistent quality. The machines are available in different sizes and configurations to meet the varying needs of manufacturers.
Overall, PVC film blowing machines play a critical role in the production of high-quality PVC films, making them a valuable investment for companies in various industries.
Technical Parameters：
|
|
Type |
XG-PVC50 |
XG-PVC55 |
XG-PVC60 |
|
Performance
|
Raw Material |
P.V.C |
||
|
Film Thickness(mm) |
0.02-0.08 |
0.02-0.08 |
0.02-0.08 |
|
|
Film Width(mm) |
70-300 |
150-500 |
200-700 |
|
|
Output(kg/h) |
8-40 |
15-50 |
20-60 |
|
|
Extruder
|
Screw Diamete(mm) |
Φ50 |
Φ55 |
Φ60 |
|
Screw L/D Ratio |
30:1 |
30:1 |
30:1 |
|
|
Main Motor(kw) |
11 |
15 |
18.5 |
|
|
Heating(kw) |
10 |
13.7 |
18.5 |
|
|
Die-head |
Die-Head Diameter(mm) |
Φ40/80 |
Φ60/120 |
Φ80/140 |
|
Die-Head Heating(kw) |
1.8/2.2 |
2/2.5 |
3/3.5 |
|
|
Winder |
Winding Ability(mm) |
Φ400×400 |
Φ400×600 |
Φ400×800 |
|
Winding Motor(kg/Nm) |
10 |
15 |
20 |
|
|
Else |
Machine Weight(T) |
1.5 |
1.8 |
2.2 |
|
Machine Dimensions(M) |
4×1.4×2.5 |
6×2.5×3.5 |
6.2×2.7×3.8 |
|
