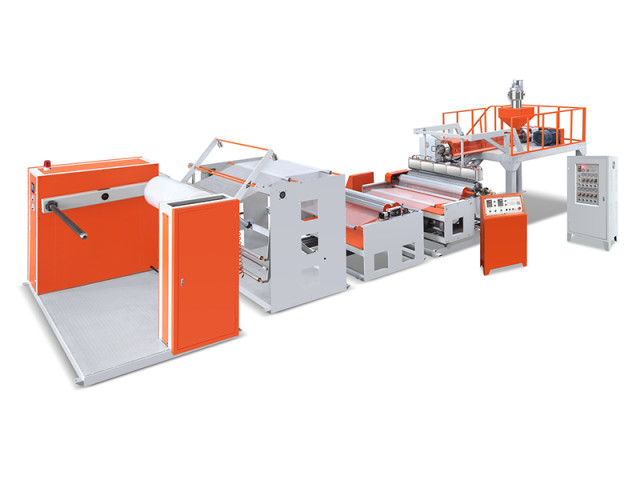

Air bubble film making machines are specialized machines used in the production of air bubble films, which are widely used in the packaging industry. These films consist of a layer of small air bubbles sandwiched between two layers of plastic film, providing cushioning and protection for a wide range of products during shipping and storage.
Online InquiryAir bubble film making machines are specialized machines used in the production of air bubble films, which are widely used in the packaging industry. These films consist of a layer of small air bubbles sandwiched between two layers of plastic film, providing cushioning and protection for a wide range of products during shipping and storage.

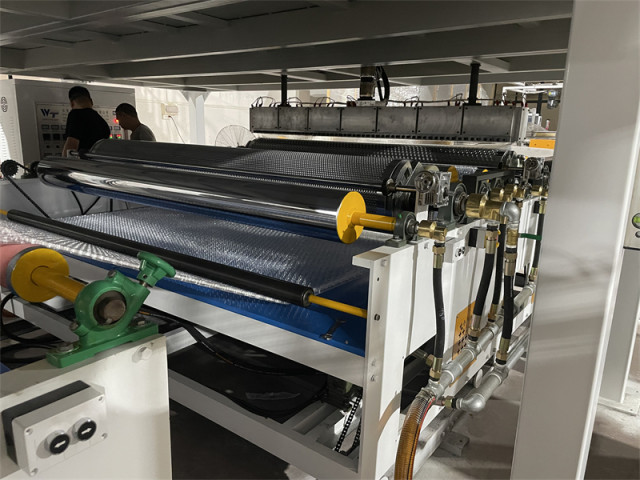

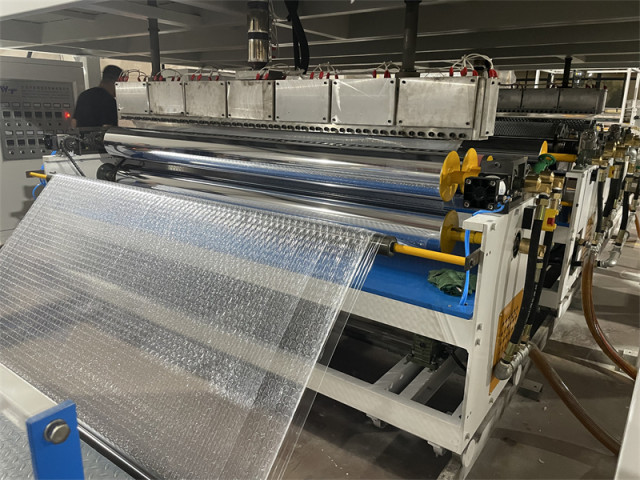

This machine extrudes molten plastic material into a continuous tube, which is then inflated with air to form the characteristic air bubble pattern. The resulting film can be used for a variety of applications, including cushioning for fragile items during shipping, insulation, and as a moisture barrier.
The extrusion process involves feeding plastic pellets or resin into the machine's hopper, where they are heated and melted before being forced through a die to form the initial tube. Air is then blown into the tube, which expands the plastic and forms the air bubbles. The film is then cooled and can be cut to the desired size and shape.
Air bubble film extrusion machines are available in a range of sizes and configurations to suit different production needs, from small-scale operations to large-scale industrial facilities. They are typically designed to be easy to operate and maintain, with features such as automatic temperature control and adjustable speed settings to ensure consistent quality and efficiency. With their versatility and reliability, air bubble film extrusion machines are an essential tool for many businesses that require high-quality packaging materials.
Here is the machine specifications for reference
Model |
XG-AB100 |
XG-AB120 |
XG-AB160 |
XG-AB180 |
XG-AB200 |
|||
Suitable material |
LDPE |
|||||||
Max.Film width |
1000mm |
1200mm |
1500mm |
1800mm |
2000mm |
|||
Film thickness |
0.006mm-0.10mm(if you have special request please clarify) |
|||||||
Max.Output capacity(kg/hr) |
70kg |
80kg |
95kg |
110kg |
120kg |
|||
Screw diameter(mm) |
65mm |
65mm |
75mm |
85mm |
90mm |
|||
Screw L/D Ratio: |
30:1 |
30:1 |
30:1 |
30:1 |
30:1 |
|||
Driving motor(kw) |
22 |
22 |
30 |
37 |
37 |
|||
Screw material |
Full bimetallic |
Full bimetallic |
Full bimetallic |
Full bimetallic |
Full bimetallic |
|||
Barrel material |
38CRMOALA |
38CRMOALA |
38CRMOALA |
38CRMOALA |
38CRMOALA |
|||
Take up speed(m/min) |
15-30 |
15-30 |
15-30 |
15-30 |
15-30 |
|||
Total power(kw) |
75 |
79 |
98 |
113 |
120 |
|||
Machine weight |
5000 |
5800 |
6800 |
7600 |
8200 |
