When plastic film blowing machine combined with an online printing unit, film blowing machines become even more versatile, allowing for the printing of high-quality designs directly onto the plastic film as it is being produced. This eliminates the need for a separate printing process and reduces production time and labour costs.
Online InquiryWhen plastic film blowing machine combined with an online printing unit, film blowing machines become even more versatile, allowing for the printing of high-quality designs directly onto the plastic film as it is being produced. This eliminates the need for a separate printing process and reduces production time and labour costs.
The online printing unit can be customized to meet the specific needs of each customer, including the number of colors, print resolution, and printing speed. This makes it possible to create customized designs, logos, and labels for a wide range of products.
So the film blowing extruder with an online printing unit is an efficient and cost-effective solution for producing high-quality plastic films with customized designs. With this equipment, manufacturers can meet the demands of their customers and stay competitive in today's fast-paced market.

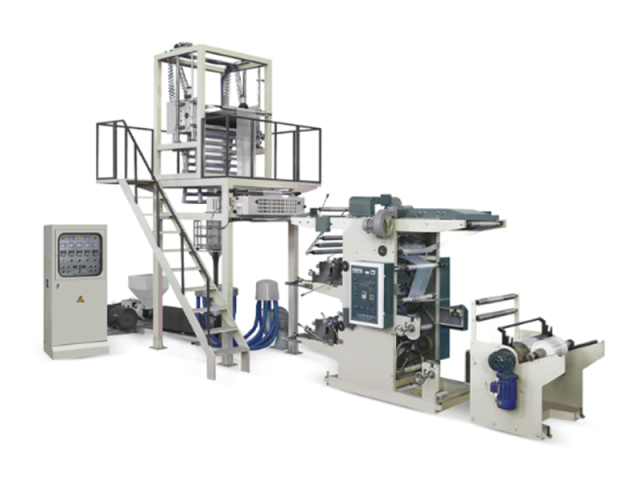

Our blown film machine with online printing unit is easy to operate, energy-efficient, and capable of producing films with high optical clarity and mechanical strength. It is able to handle a wide range of plastic materials, including low-density polyethylene (LDPE), high-density polyethylene (HDPE), and linear low-density polyethylene (LLDPE)
With a reliable plastic film blowing machine, our machine can meet customers’ production goals with ease and produce high-quality plastic films that meet their customers' expectations.
Optional Equipment:
1. Auto-loader
2. Corona treater
3. Rotary die head
4.Double winder
5. Air compressor
6. High speed screen changer
Here is the machine specifications for reference
|
Model |
XG-SJ50/YT2600 |
XG-SJ55/YT2800 |
XG-SJ60/YT21000 |
XG-SJ65/YT21200 |
|
Suitable material |
HDPE/LDPE/LLDPE |
|||
|
Film width |
100-600mm |
100-800mm |
100-1000mm |
100-1200mm |
|
Film thickness |
0.006mm-0.10mm(if you have special request please clarify) |
|||
|
Max.Output capacity(kg/hr) |
HD:35kg LD:40kg |
HD:45kg LD:55kg |
HD:55kg LD:70kg |
HD:70kg LD:90kg |
|
Screw diameter(mm） |
50mm |
55mm |
60mm |
65mm |
|
Screw L/D Ratio: |
30:1-32:1 |
30:1-32:1 |
30:1-32:1 |
30:1-32:1 |
|
Driving motor(kw) |
11 |
15 |
22 |
30 |
|
Screw material |
Full bimetallic |
Full bimetallic |
Full bimetallic |
Full bimetallic |
|
Barrel material |
38CRMOALA |
38CRMOALA |
38CRMOALA |
38CRMOALA |
|
Cylinder cooling |
250wx1 |
250wx1 |
250wx2 |
250wx2 |
|
Temperature control(zone) |
5 |
5 |
6 |
6 |
|
Die head size(mm） |
60/80mm |
80/120mm |
80/150mm |
120/220mm |
|
Air blower(kw) |
1.5 |
2.2 |
3 |
4 |
|
Roller width(mm） |
700 |
900 |
1100 |
1300 |
|
Take up speed(m/min） |
10-80 |
10-80 |
10-80 |
10-80 |
|
Take up motor(kw) |
1.5 |
1.5 |
2.2 |
2.2 |
|
Winding motor(N/M) |
6 |
6 |
10 |
10 |
|
Winding speed(m/min) |
10-60 |
10-60 |
10-60 |
10-60 |
|
Printing unit |
2 color |
2 color |
2 color |
2 color |
|
Maximum printing width(mm) |
560 |
760 |
960 |
1160 |
|
Cylinder size with machine for free |
400mm one set or as client request |
400mm one set or as client request |
400mm one set or as client request |
400mm one set or as client request |
