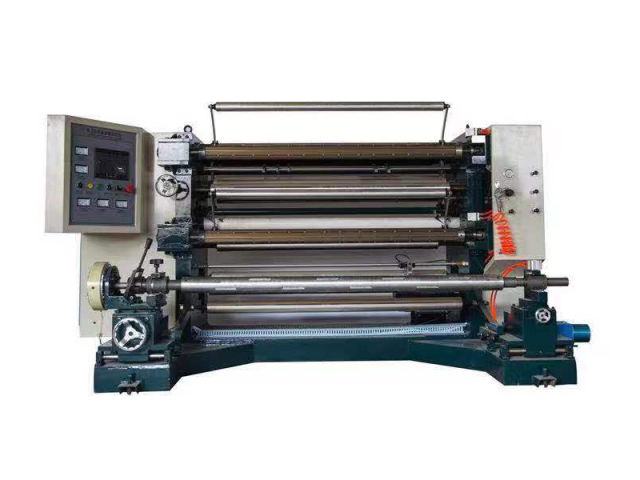

Normal Type Slitting And Rewinding Machine

The slitting and rewinding machine is a device that is used to convert large rolls of material into narrower rolls by slitting and rewinding them onto separate spools or cores. The machine is commonly used in various industries, such as packaging, printing, and textiles.

Online Inquiry

The slitting and rewinding machine is a device that is used to convert large rolls of material into narrower rolls by slitting and rewinding them onto separate spools or cores. The machine is commonly used in various industries, such as packaging, printing, and textiles.

The process of slitting involves cutting a wide roll of material into narrower strips, which can then be rewound onto separate spools or cores. The slitting process is typically achieved using a set of circular blades that are positioned in a way that ensures that the material is cut into the desired widths. The machine can be programmed to cut the material into different widths, depending on the specific requirements of the job.

Once the material has been cut into narrower strips, it is then rewound onto separate spools or cores. The rewinding process ensures that the material is wound tightly and evenly onto each spool, which helps to prevent any damage or distortion to the material during transportation or storage.

In addition to slitting and rewinding, a slitting and rewinding machine may also include other features to enhance its functionality. For example, the machine can include a tension control system that helps to ensure that the material is properly aligned and wound during the slitting and rewinding process. The machine may also include sensors that can detect any irregularities or defects in the material, which can help to prevent any issues during the slitting and rewinding process.

Overall, a slitting and rewinding machine is an essential tool for industries that need to convert large rolls of material into smaller, more manageable rolls. The machine provides a cost-effective and efficient way to cut and rewind material, which helps to improve productivity and reduce waste.

Model

XG-SRA1300

XG-SRA1600

XG-SRA1800

Suitable material

Plastic film,paper,non woven etc.

Maximum slitting width

1300mm

1600mm

1800mm

Maximum feeding material diameter

1000mm

1000mm

1000mm

Maximum rewinding diameter

500mm

500mm

500mm

Max.Speed(m/min)

150

150

150

Total power(kw)

8

10

12

Machine weight(kg)

2500

3000

3500
