This machine is based on our company's many years of casting equipment manufacturing and actual operation of customers, continuously accumulating experience, and combining with foreign advanced technology, it is constantly updated and transformed. It has high plasticization, easy operation, long machine life, and power saving.

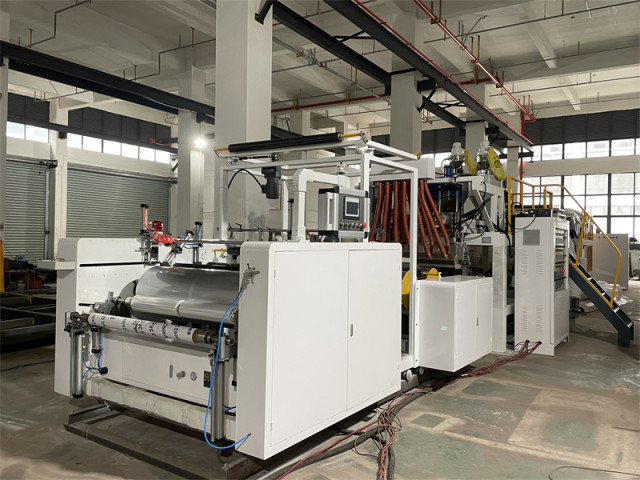

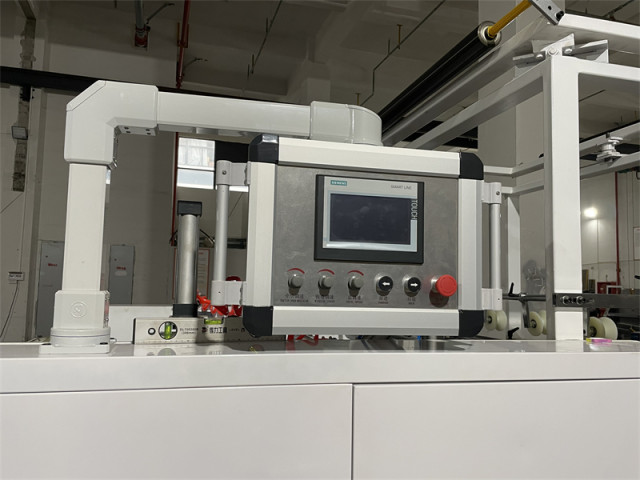

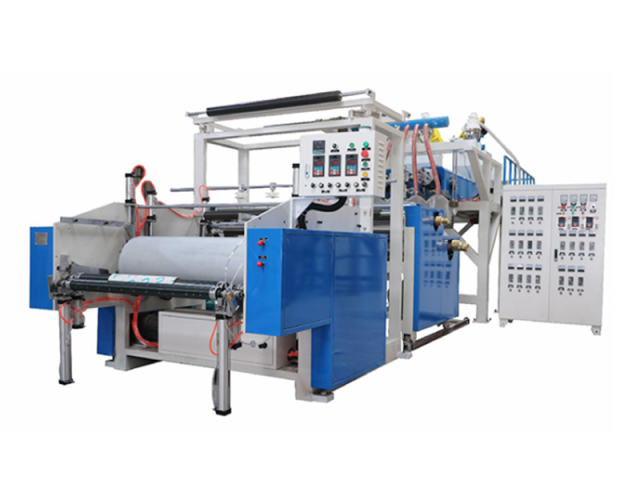

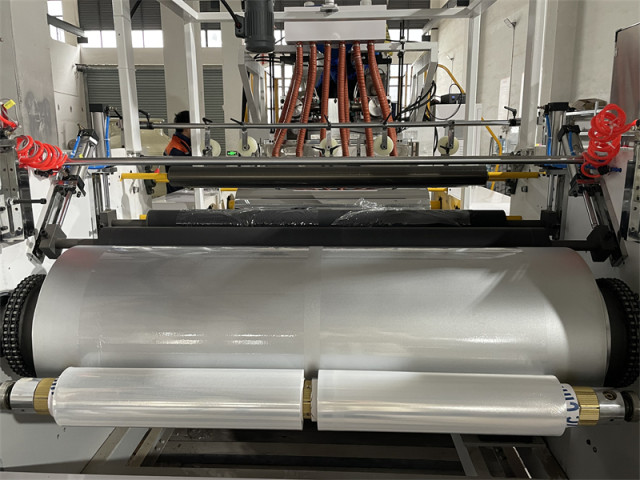

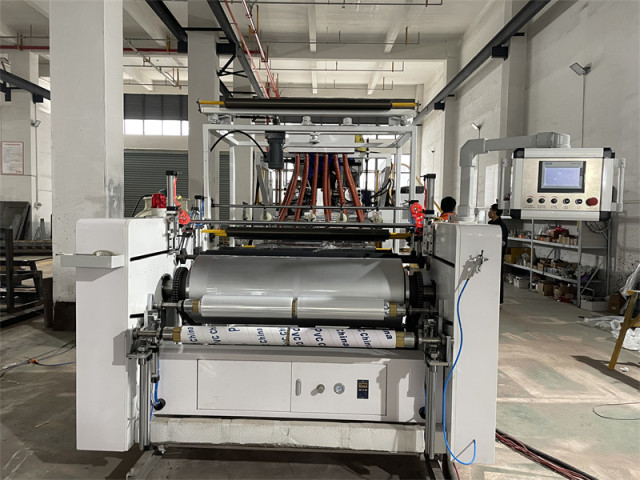

Online InquiryThis machine is based on our company's many years of casting equipment manufacturing and actual operation of customers, continuously accumulating experience, and combining with foreign advanced technology, it is constantly updated and transformed. It has high plasticization, easy operation, long machine life, and power saving. The cast film production unit with the latest technology is mainly suitable for the production of LLDPE, LDPE, PE, CPE, CEVA and other cast films. The unit adopts advanced intelligent industrial control system, with hidden automatic cutter, automatic material cutting, manipulator Automatic roll changing, automatic loading and unloading of paper tube device, to ensure safe and convenient operation. The winding is stronger and smoother, which ensures the quality of the product. Greatly improved production efficiency. Reduce production costs and create greater value. Adding a swing device to the auxiliary machine can improve the flatness and appearance quality of the coil, making the product more competitive.
Model |
XG-WF1500 |
XG-WF1850 |
Suitable material |
LDPE |
|
Max.Film width |
1500mm |
1850mm |
Film thickness |
0.006mm-0.10mm(if you have special request please clarify) |
|
Max.Output capacity(kg/hr) |
100kg |
150kg |
Screw diameter(mm) |
65mm |
90mm |
Screw L/D Ratio: |
30:1 |
30:1 |
Driving motor(kw) |
22 |
45 |
Screw material |
Full bimetallic |
Full bimetallic |
Barrel material |
38CRMOALA |
38CRMOALA |
Take up speed(m/min) |
15-30 |
15-30 |
Total power(kw) |
75 |
110 |
Machine weight |
3500 |
5000 |
