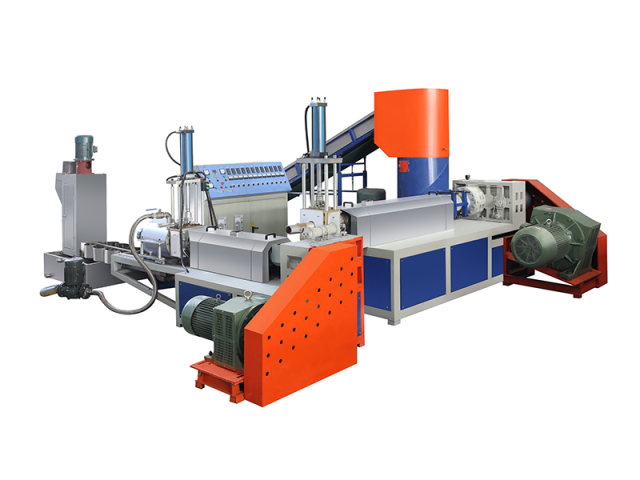

Water Cooling Type Double Stage Plastic Recycle Machine With Water Ring Cutting

Water cooling type double stage plastic recycle machines with water ring cutting are highly efficient and effective recycling machines that are widely used in the plastics industry.

Online Inquiry

Water cooling type double stage plastic recycle machines with water ring cutting are highly efficient and effective recycling machines that are widely used in the plastics industry. This plastic pelletizing machines utilize a water ring cutting system to effectively cut the plastic waste material into small pieces, which are then cooled using a water cooling system. The cooled plastic is then granulated, allowing it to be reused in the manufacturing process.

The water cooling system used in these machines ensures that the plastic is cooled rapidly and uniformly, preventing any deformation or degradation of the material. This results in a high-quality recycled plastic that can be used in the production of a wide range of plastic products.

The water ring cutting system is another important feature of these machines. This system allows for precise cutting of the plastic waste material, ensuring that the resulting granules are uniform in size and shape. This makes it easier to process the recycled plastic and helps to reduce waste.

Overall, water cooling type double stage plastic recycling granulator with water ring cutting are an excellent choice for any business looking to recycle plastic waste. The plastic recycling cutting machine are highly efficient, effective, and can help to reduce waste and save on costs in the manufacturing process.

Model

XG-RYD90/80

XG-RYD120/110

XG-RYD135/125

XG-RYD150/150

Suitable material

     HDPE/LDPE/LLDPE/PP film or hard scrape

Output capacity(kg/hr)

30-50 for film

50-80 for hard scrape

80-120 for film

150-200 for hard scrape

150-200for film

250-300 for hard scrape

250-300 for film

400-500 for scrape

First stage

Screw diameter(mm)

90mm

120mm

135mm

150mm

Screw L/D Ratio:

23:1

23:1

23:1

23:1

First stage

Driving motor(kw)

22

37

55

90

Second stage

Screw diameter(mm)

80mm

110mm

125mm

150mm

Screw L/D Ratio:

10:1

10:1

10:1

10:1

Second stage

Driving motor(kw)

11

22

30

45

Machine weight:

2500

4000

5000

7000
