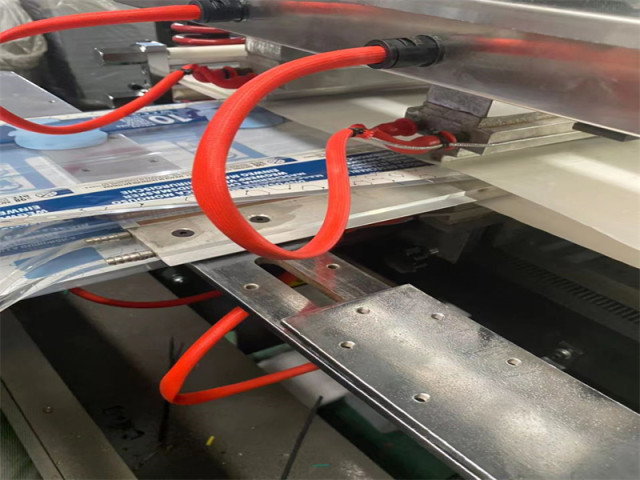

XG-THR-B500 Three-side Sealing, Middle Sealing Dual-purpose Bag-making machine

Whole machine controlled by central PLC control system with man-machine. More stable performance, easy for operation and maintenance. Chinese and English interface language can be shifted easily.

Online Inquiry

1. Whole machine controlled by central PLC control system with man-machine. More stable performance, easy for operation and maintenance. Chinese and English interface language can be shifted easily.

02. Constant auto-tension control for unwinding, LPC edge alignment, AC inverter constant speed auto material feeding.

03. Imported double servo-motor material dragging control system.

04. Main motor for up-down sealing and pressing equipped with inverter.

05. PID for sealing bar temperature adjustment, no touch auto control, centralized setting in man-machine interface.

06. Equipped with Pneumatic multi-function auto punching device, trim cutting and auto rewinding and static eliminator.

07. Temperature adjustment range: 0~300°C.

08. Counter: quantity, batch accumulation, pre-set available.

09. Operation Method: by length fixation control and/or by photocell tracking control.

10.Punching device: working rhythm can pre-set as continuous, interval or stop, punching time can be pre-set.

11.Material Skip Feeding: one to six times available.

12.Batch Conveying Function available, the quantity of batch can be preset.

Model

XG-THRB400

XG-THRB500

Maximum diameter of roll

600mm

600mm

Maximum bag making width

425mm

525mm

Bag making length

50-380mm

50-380mm

Output capacity(pcs/min)

80-120

80-120

Total machine power

40

40

Weight(kg)

5000

5500
